NeoWideRange Thru-Tubing Bridge Plugs (NeoT-TBP)

Our NeoWideRange Vented Thru-Tubing Bridge Plugs provide performance and features that save time and money at the wellsite. With an estimated success rate greater than 95% when deployed via wireline and slickline, NeoT-TBPs offer a reliable and efficient solution for well intervention projects.

Interested? Call Us!

BROWSE MORE PLUGS:

POSITIVE-SEALING ELASTOMERIC PLUGS | CAST IRON PLUGS | MAGNA RANGE PLUGS | CUSTOM PLUGS

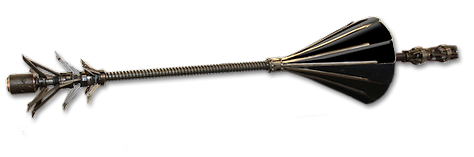

NeoWideRange Bridge Plug

NeoWideRange Bridge Plug

NeoWideRange T-TBPs

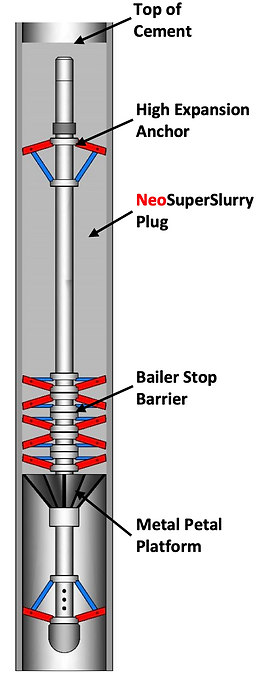

NeoWideRange T-TBPs pass through small diameter restrictions and can set in diameters up to 5 times their run-in diameter. NeoSuperSlurry is placed atop the plug to achieve long-term pressure isolation. The combination of the two provides zonal isolation for the life of the well.

FEATURES:

*Explosive and Non-Explosive options are available

*The total number of WL runs is the same as the number for thru-tubing mechanical bridge plugs

*The wait-on-cement time is the same as WOC for thru-tubing mechanical bridge plugs

*Project time from nipple-up to nipple-down is the same as thru-tubing mechanical bridge plugs

*An automatic closing vent valve eliminates vent closing and interim wait-on-cement time

*Each NeoWideRange T-TBP sets in a wide range of casing sizes

*Bailer Stop allows precise setting depth determination on setting run

*Bailer Stop will not allow bailers to descend to the metal-petal-platform

SIZES:

*Size 1 sets in 2 ⅜” through 4” tbg.

*Size 2 sets in 4 ½” through 7” csg.

*Sets in 7 ⅝” csg.

*Sets in 9 ⅝” csg.

NeoWideRange Bridge Plug

Explosive Deployed NeoWideRange T-TBPs

FEATURES:

*Successful setting and anchoring is verified on the setting run

*Bailer Stop feature allows precise setting depth determination on setting run

*Bailer Stop feature will not allow bailers to descend to the metal-petal-platform

BASIC OPERATIONS FOR RUNNING AN EXPLOSIVE DEPLOYED NEOT-TBP WITH AN A-96L DETONATOR:

1. The explosive deployed NeoT-TBP is pre-loaded in a setting sleeve

2. The Double Box Window Sub is attached to the top of the NeoT-TBP

3. An A-96L detonator is wired and housed in the Double Box Window Sub

4. Once at depth, the detonator is fired, which allows the NeoT-TBP to release from the setting sleeve

5. The NeoT-TBP ejects 12-18 inches out of the setting sleeve

6. Now that the lower anchors of the NeoT-TBP have ejected from the setting sleeve and bit into the casing, the setting sleeve can be pulled up back to surface, thus leaving the NeoT-TBP at the desired depth

Non-Explosive Deployed NeoWideRange T-TBPs

Non-Explosive NeoWideRange T-TBPs provide a safe, reliable alternative to traditional explosive deployed thru-tubing bridge plugs. In order to eject the non-explosive deployed NeoT-TBP at the customer’s desired depth downhole, a NeoReleaseTool (NeoRT) is used. The NeoRT, available upon request, is attached to the top of the NeoT-TBP and has a 1.63’’ outer diameter for small run-in-hole diameters.

FEATURES:

*Successful setting and anchoring is verified on the setting run

*Bailer Stop feature allows precise setting depth determination on setting run

*Bailer Stop feature will not allow bailers to descend to the metal-petal-platform

BASIC OPERATIONS FOR RUNNING A NON-EXPLOSIVE DEPLOYED NEOT-TBP WITH A NEORT:

1. The Non-Explosive deployed NeoT-TBP is pre-loaded in a setting sleeve

2. A NeoRT is attached to the top of the NeoT-TBP

3. Once at depth, 450-500 mA of current is provided down the wireline to actuate the NeoRT

• No more than 3-4 seconds of 450-500 mA of current is needed

• Bring the current back to zero and then repeat the 450-500 mA process 2 more times to ensure proper deployment of the NeoT-TBP

4. Once actuated, the NeoRT releases the NeoT-TBP and allows the NeoT-TBP to eject out of the setting sleeve 12-18 inches

5. Now that the lower anchors of the NeoT-TBP have ejected from the setting sleeve and bit into the casing, the setting sleeve and NeoRT can be pulled up back to surface, thus leaving the NeoT-TBP at the desired depth

VIDEO RESOURCES: NEOT-TBPs

Rigless Recompletion Using Vented T-TBPs

Rigless Recompletion Using
Vented NeoWideRange T-TBPs
